Orbea Gain M30i 20mph

Orbea Gain M30i 20mph
  • Color: Tanzanite Carbon View (Matt)/Carbon Raw (Gloss)
  • Color: White Chic/Metallic Green Artichoke (Gloss)
$6,399.00 - $6,399.99
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience. *Additional shipping charges may apply to warehouse stock items.

Details

The Gain is designed to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road. Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it's just you, Gain and hours of road ahead.

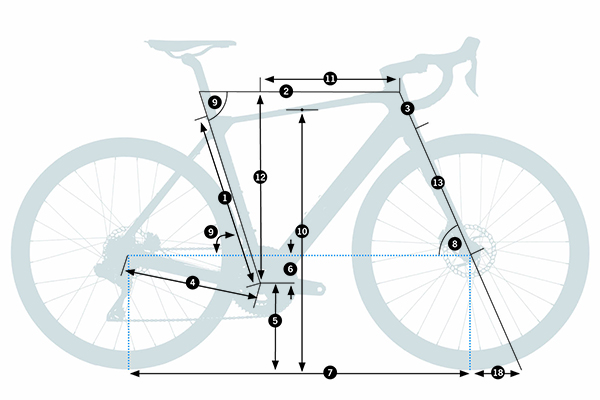

Geometry Chart:
X-SmallSmallMediumLargeX-LargeXX-Large
1 - SEAT TUBE (C-T) 430 460 490 515 540 570
2 - TOP TUBE (EFF) 516 535 555 569 587 602
3 - HEAD TUBE 113 136 158 181 203 225
4 - CHAINSTAY 415 415 415 415 415 415
5 - BB HEIGHT 263 263 263 265 265 265
6 - BB DROP 78 78 78 76 76 76
7 - WHEELBASE 984 998 1011 1022 1035 1047
8 - HEAD ANGLE 71º 71.2º 71.5º 72º 72.2º 72.5º
9 - SEAT ANGLE 74.5º 74º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER 728 756 782 803 830 844
11 - REACH 370 378 386 394 402 410
12 - STACK 525 547 569 591 613 635
13 - FORK LENGTH 380 380 380 380 380 380
14 - RAKE 50 50 50 50 50 50
15 - TRAIL 64.5 63.3 61.4 58 57 55
Sizes:
Frame SizeRider height (in)
X-Small 61.1"-65.4"
Small 65.7"-67.7"
Medium 68.1"-70.5"
Large 70.9"-72.8"
X-Large 73.2"-75.2"
XX-Large 75.6"-81.5"

Specs

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle
Wheels Alloy, Tubeless, 700c, 21c
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Pirelli P ZERO™ Race TLR 700x30c
Crankset Shimano 105 R7100 34x50t
Shifters Shimano Di2 R7170
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M7100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP20 Alu SL, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Carbon, 27.2mm, Setback 20
Saddle Fizik Aliante R5
Pedals Sold separately
Accessories & Extras Remote: Mahle ONE Head Unit (BT/ANT+)
Mahle Handlebar Dual eShifter
Motor Mahle motor hub X20, ALC
Battery Mahle iX350 36V 353Wh
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Charger Mahle Active Charger up to 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / X-Small 08434446386596 N62502DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Small 08434446386626 N62503DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Medium 08434446386800 N62505DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / Large 08434446386831 N62507DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / X-Large 08434446386862 N62509DB
Tanzanite Carbon View (Matt)/Carbon Raw (Gloss) / XX-Large 08434446387043 N62510DB
White Chic/Metallic Green Artichoke (Gloss) / X-Small 08434446386589 N62502D4
White Chic/Metallic Green Artichoke (Gloss) / Small 08434446386619 N62503D4
White Chic/Metallic Green Artichoke (Gloss) / Medium 08434446386794 N62505D4
White Chic/Metallic Green Artichoke (Gloss) / Large 08434446386824 N62507D4
White Chic/Metallic Green Artichoke (Gloss) / X-Large 08434446386855 N62509D4
White Chic/Metallic Green Artichoke (Gloss) / XX-Large 08434446387036 N62510D4
Infinity Green Carbon View (Matt) / X-Small
Infinity Green Carbon View (Matt) / Small 8434446675058 N62503C9 210000020067
Infinity Green Carbon View (Matt) / Medium 8434446675072 N62505C9
Infinity Green Carbon View (Matt) / Large
Infinity Green Carbon View (Matt) / X-Large
Infinity Green Carbon View (Matt) / XX-Large
