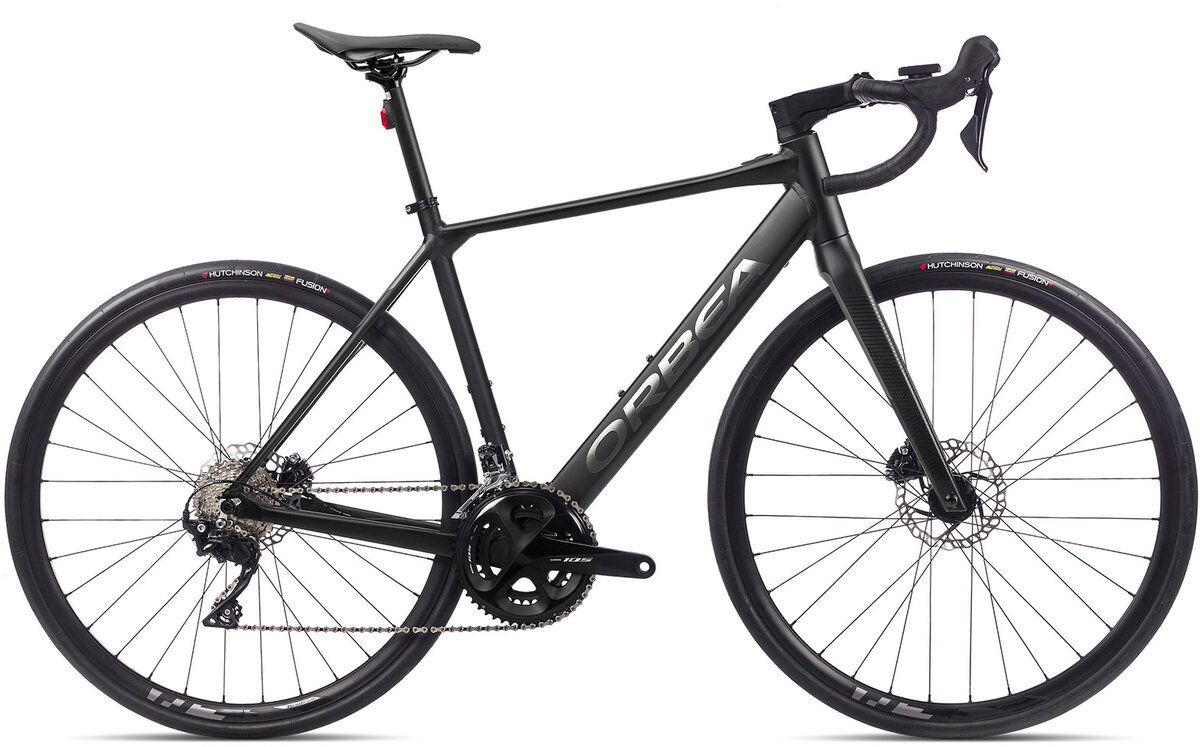

Orbea Gain D30

ENHANCE YOUR RIDE
We designed Gain to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike - a machine that heeds the call of the open road.

Every drop of sweat, every pedal stroke ignites the Gain so you can add more kilometers. Its seamless and integrated interfaces are modern and intuitive. The bike is designed to enhance your experience by minimizing distractions so it's just you, Gain and hours of road ahead.

ICR PLUS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment. The entire Orbea road line offers this clean solution with OC Integrated stems and cable covers.

INTEGRATED LIGHTS
It's like magic - Fully integrated lighting is just one more feature to enhance your ride. Gain is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Gain is ready for the road.

HIDDEN CLAMP
The seatpost clamp of each Gain Carbon is integrated smoothly into the frame, decreasing the likelihood of contamination and increasing aerodynamics. It also looks great, too.

EBIKEMOTION X35 PLUS
The Gain motor is the heart of the bike and the key component behind the Enough Energy concept. Its sophisticated transmission system provides smooth, balanced and reliable pedaling assistance in levels that allow you to improve your rides without making it too easy. And since the motor is located on the wheel axle, not the bottom bracket, you'll enjoy pedaling without resistance when the power assist is off. The Gain's torque simulation algorithm allows the bike to match power input per pedal stroke in order to generate more power when it's needed and conserve it when it's not.

ENOUGHT ENERGY CONCEPT
- 36V-250W
- MAX TORQUE: 40N.M
- MAX SPEED: 25KM/H or 32KM/H
- WEIGHT: 2.1KG

X35 BATTERY

INTERNAL BATTERY
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain's Enough Range battery provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

ENOUGH ENERGY CONCEPT
- 36V 250WH PANASONIC BATTERY
- CAN-BUS COMMUNICATION
- BALANCED WEIGHT DISTRIBUTION

INTEGRATED COVERS
Gain has only one external wire connection, allowing the rear wheel to be removed from the bike. This cable is tucked neatly under the chainstay and hidden with a smoothly-integrated cover. The battery access port under the BB is similarly invisible, and the headset cover blends neatly into the top tube. After all, what's the point of designing a great-riding bike and forgetting the design details?

IWOC ONE AND DISPLAY
Gain's control center is an attractive and discreet button on the top tube and a cycle computer mounted on the stem. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.

- Battery & assist level.
- Smart & compact.

PAS SENSOR
Gain's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.

- 40 Pulses per revolution.
- Magnetized lock ring sensor.
- Proprietary Algorithm & Electronics.
