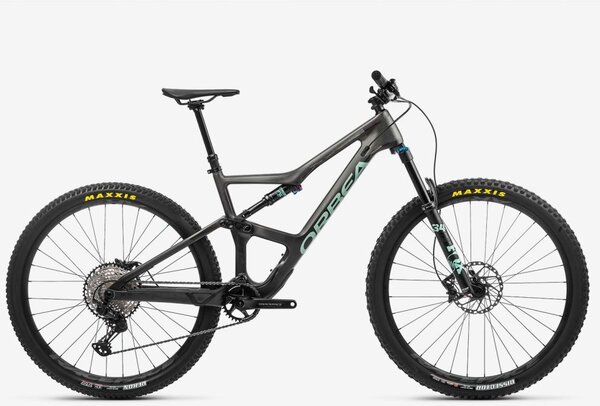

Orbea Occam M30

Orbea Occam M30
  • Color: Ice Green/Jade Green Carbon View (Gloss)
  • Color: Infinity Green Carbon View (Matt-Gloss)
  • Color: Metallic Mulberry/Black (Gloss)
$3,799.99
Color:
Infinity Green Carbon View (Matt-Gloss)
Size:
Medium
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience. *Additional shipping charges may apply to warehouse stock items.

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 35 35 35 35
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 66º 66º 66º 66º
9 - SEAT ANGLE 77º 77º 77º 77º
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 45 780 390/125
MEDIUM 170 45 780 440/150
LARGE 175 55 780 440/150
X-LARGE 175 55 780 480/170

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Fork Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x50mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR / Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Crankset Race Face Aeffect 32T
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51T 12-Speed
Chain Shimano M6100
Orbea OC chainguide
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Control MC30, Rise20, Width 800
Stem Alloy 3D forged, 35mm interface, -7º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Accessories & Extras Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Infinity Green Carbon View (Matt-Gloss) / Medium 08434446183133 N26017LS 210000019578
