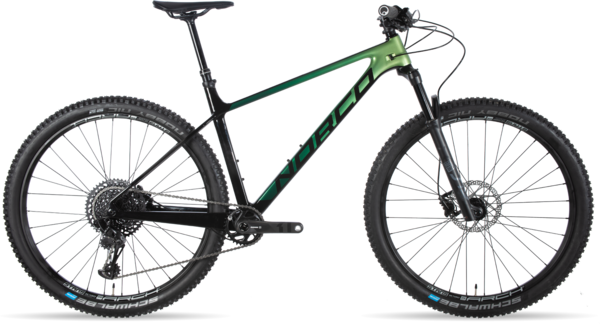

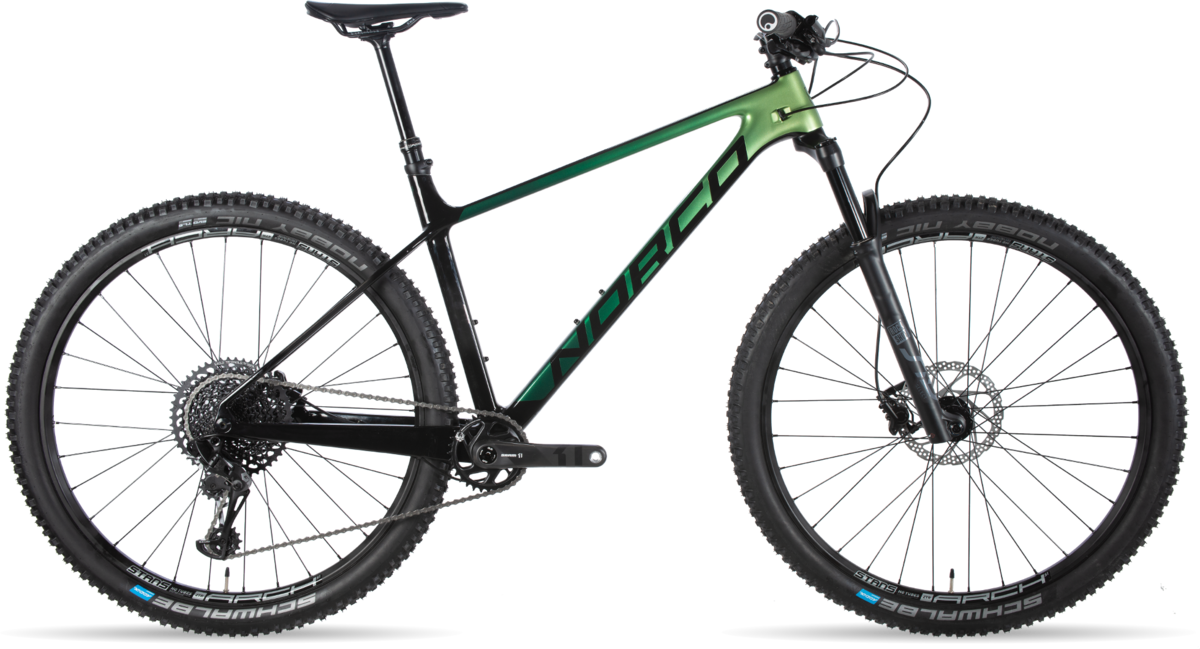

Modern XC riding has evolved, so we re-designed and optimized the Norco Revolver HT to win — on the race course, and in your mind.
The rider-centered design makes the most of every pedal stroke, and the precise engineering of the lightweight, efficient frame will transmit every Watt you produce onto the trail, while the light, stiff RockShox SID Select 120mm fork soaks up the bumps and carries you where you want to go.
Featuring a SRAM GX/NX drivetrain, the Revolver HT 1 is as fast and as light as a Trail hardtail can get. With SRAM Guide T brakes, DT Swiss 350/Stans Arch S1 tubeless ready wheelset and Schwalbe Nobby Nic 29x2.35” tires, you’ll be out of excuses for not riding your best and having a ball this year.
- Carbon XC Race frame
- RockShox SID Select 120mm fork
- SRAM X1/GX Eagle 12-speed drivetrain
- Stans Arch S1 rims with DT 350 hubs
- SRAM Guide T hydraulic disc brakes
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
|Frame||Carbon XC Race|
|Fork||RockShox SID Select, 120mm Travel|
|Headset||FSA Internal Headset|
Front: 15 x 110mm Boost thru-axle
Rear: 12 x 148mm Boost thru-axle
|Rims/Wheels||Stans Arch S1 29"|
|Hubs||DT Swiss 350|
|Spokes||Stainless 14g, Black|
|Tires||Schwalbe Nobby Nic 29x2.35" Snakeskin TL/Addix Spd Grip|
|Crankset||SRAM X1 Eagle DUB Carbon|
|Bottom Bracket||SRAM BB DUB PressFit|
|Chain||SRAM NX Eagle|
|Rear Derailleur||SRAM GX Eagle|
|Cassette/Rear Cogs||SRAM XG 1275 10-50T|
|Shifters||SRAM GX Eagle 12spd|
|Handlebars||Norco DB Lite, 760mm, 15mm rise|
|Tape/Grips||Ergon GA30 lock on|
|Stem||Norco SL Alloy|
|Brakes||SRAM Guide T, Hydraulic, 180mm front / 160mm rear rotors|
|Seat Post||X-Fusion Manic 125mm dropper, 31.6mm|
* Subject to change without notice.
|Green Fade / Small||058817428098||0665210904|
|Green Fade / Medium||058817428104||0665210905|
|Green Fade / Large||058817428111||0665210906|
|Green Fade / X-Large||058817428128||0665210907|
