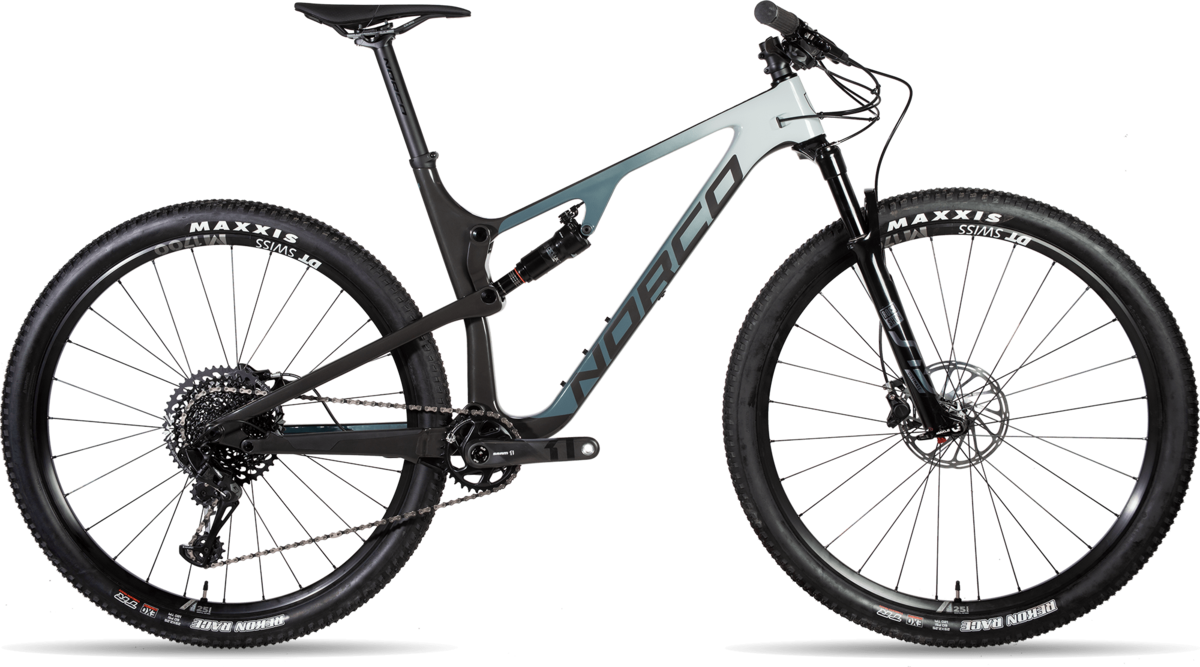

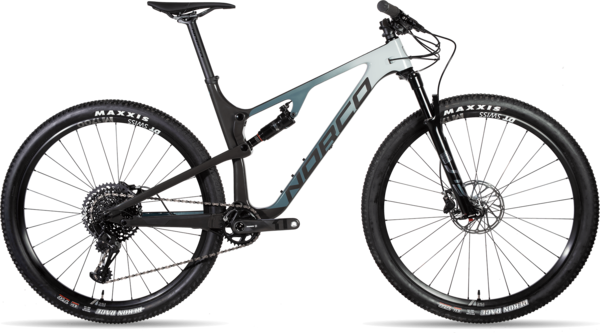

Norco Revolver FS 1 100

Norco Revolver FS 1 100
Please select options
Sorry, this item is currently not available. Please call to see if there is another item we could suggest.


Performance XC as re-defined by the Norco Factory XC team — the Revolver 1 FS 100 combines our ultimate cross country race platform with SRAM's GX Eagle drivetrain and Level TLM brakes to make a remarkably fast XC race bike that leaves you some cash in the bank for race fees and a travel budget. The rider-centered design makes the most of every pedal stroke, while every last precision-tuned millimeter of suspension travel excels on today's technical, physically demanding XC courses.

- Hi-Mod Carbon frame
- RockShox SID Ultimate fork and Rockshox Deluxe RLR shock
- SRAM X1/GX Eagle drivetrain
- DT Swiss M1700 wheels
- SRAM Level TLM hydraulic disc brakes


Frame Hi-Mod Carbon, 100mm Rear Travel
Fork RockShox SID Ultimate, 100mm Travel
Headset FSA Internal
Rear Shock Rockshox Deluxe RLR, Remote Lockout
Rims/Wheels DT Swiss M1700 Spline Wheelset, 25mm ID
Hubs DT Swiss M1700
Spokes DT Swiss Competition, Straight Pull, Spline Nipples
Tires Maxxis Rekon Race, 29 x 2.25"
Crankset SRAM X1 Eagle DUB Carbon 12spd
Chainrings 32T
Bottom Bracket SRAM DUB, Press Fit, 92mm
Chain SRAM GX Eagle, 12 speed
Rear Derailleur SRAM GX Eagle, 12 speed
Cassette/Rear Cogs SRAM XG1275 Eagle, 10-50T
Shifters SRAM GX Eagle, 12 speed
Handlebars 6061 DB Aluminum, 31.8mm, 760mm Length, 15mm Rise
Tape/Grips SRAM Twistloc
Stem SL Aluminum, 60mm Length
Brakes SRAM Level TLM, 180mm front / 160mm rear rotors
Saddle Norco SL Race, Chromo Rails
Seat Post SL Aluminum, 31.6mm

* Subject to change without notice.


The All-New Norco Revolver FS 100

Part Numbers

Option UPC MPN
Carbon/Concrete / Small 058817403118 0660310944
Carbon/Concrete / Medium 058817404245 0660310945
Carbon/Concrete / Large 058817404252 0660310946
Carbon/Concrete / X-Large 058817404269 0660310947
