Norco Range VLT C3

Norco Range VLT C3
Electric Blue/Dark Blue
Please select options
Sorry, this item is currently not available. Please call to see if there is another item we could suggest.

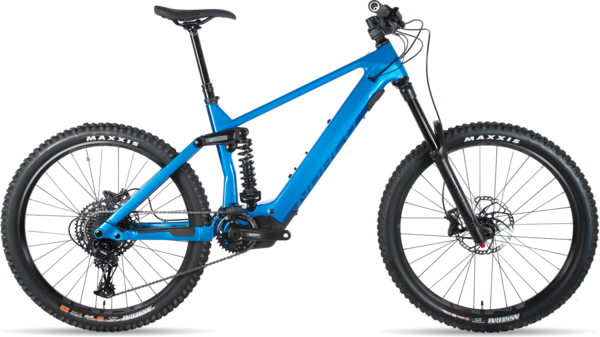

The Range VLT 3 is a monster of an e-bike built to smash through tough, burly trails, careen down rock faces, and just go big.

Using Norco's holistic approach to fit, geometry and suspension kinematics, the Range VLT 3's unique combination of long-reach, slack head tube angle and steep seat tube angle creates a more forward weight distribution within a longer wheelbase for the ultimate in big mountain, e-Enduro performance.

With a 180mm travel RockShox Yari RC fork up front and 170mm in back from a Super Deluxe Select Coil shock, the Range VLT 3 is sufficiently designed for jumps and big drops. It uses 203mm Shimano MT520 4-piston brakes to keep speed in check. The SX Eagle drivetrain and Shimano STEPS E7000 motor with 500Wh in-tube battery, and optional 360Wh range extender, keep the good times rollin'.

- Carbon mainframe and seatstay w/170mm rear travel
- Shimano STEPS E7000 motor with in-tube 500Wh battery
- RockShox Yari RC 180mm, boost, E-Rated, Motion Control fork
- RockShox Super Deluxe Select Coil shock
- SRAM SX Eagle 12-speed drivetrain
- Maxxis Assegai. 2.5” tires

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.


Motor Shimano STEPS E7000
Battery In-Tube Battery, 500Wh
Frame Carbon 27.5, 170mm Travel, M/L/XL
Fork RockShox Yari RC, Motion Control, 180mm Travel, E-MTB
Headset FSA No.57, Block, sealed bearing, internal
Rear Shock RockShox Super Deluxe Coil Select R, Trunnion, M 500lb, L 550lb, XL 600lb Spring Weight
Axles Front: 15 x 110mm Boost thru-axle
Rear: 12 x 148mm Boost thru-axle
Rims/Wheels e*thirteen LG1 DH, 27.5
Hubs Front: Shimano Deore HB-6010 15x110mm Boost
Rear: DT Swiss H370 E-MTB
Spokes DT Swiss stainless steel butted front, DT Alpine rear
Tires Front: Maxxis Assegai. 2.5” 3C Maxx Terra, EXO+, TR
Rear: Maxxis Assegai, 2.5” 3C Maxx Grip, DD, TR
Crankset Shimano FC-E8000, 165mm, SRAM Eagle narrow/wide
Chainrings 34T
Bottom Bracket Samox 104 BCD Spider, Shimano spline
Chain SRAM NX Eagle
Rear Derailleur SRAM SX Eagle
Cassette/Rear Cogs SRAM PG 1210 Eagle
Shifters SRAM SX Eagle, 12 speed, Single Click
Handlebars Norco 6061 Aluminum, 800mm, 20mm rise, 35mm bore
Tape/Grips Ergon GE10 EVO, lock on
Stem Norco 40mm, 35mm bore
Brakes Shimano BR MT520 4 piston Hydraulic, 203mm
Saddle WTB Volt Sport
Seatpost JD TranzX YSP-39JL Dropper M/150, L/XL170mm, 1x lever
Accessories & Extras e*thirteen Compact Upper Slider chain tensioner

* Subject to change without notice.


Part Numbers

Option UPC MPN
Electric Blue/Dark Blue / Medium 058817433245 0200310705
Electric Blue/Dark Blue / Large 058817433252 0200310706
Electric Blue/Dark Blue / X-Large 058817433269 0200310707
