The Fluid HT 3 features a new progressive aluminum frame design to create the ultimate singletrack adventure hardtail.
The Fluid HT 3's unique combination of long reach, slack head tube angle and steep seat tube angle provides a forward weight distribution with its long wheelbase to achieve its playful, capable performance. This allows more powerful pedaling, increased climbing traction and added grip and control when descending so you can confidently navigate the trail.
With frames designed around 27.5 or 29" wheels depending on frame size, the Fluid HT 3 features a reliable 120mm SR-Suntour XCM32 suspension fork and Shimano Deore 10-speed drivetrain for smooth, confident shifts. Control and confidence are optimized on descents with a Tranz-X 130mm Stealth dropper post and Tektro HD-M275 hydraulic disc brakes.
- 6061 DB alloy Fluid frame, space for up to 2.6" tires
- Updated Trail geo based around 120mm travel forks
- Internal routing for shifter and brake cables
- Shimano Deore 1x10 drivetrain
- Tektro HD-M275 hydraulic disc brakes
- Schwalbe Smart Sam 2.6" tires
Wider than standard yet narrower than fat, plus-size rims and tires hit the sweet spot in grip, stability, and speed, giving you more confidence on technical terrain. Compared to a standard tire you’ll feel grip in places you wouldn’t expect thanks to a bigger contact patch and greater rollover clearance. More air volume allows lower tire pressures which softens bumps and increases float on sand or snow. Whether you’re a novice or an expert, the benefits of plus-size tires and rims will amplify your mountain biking fun.

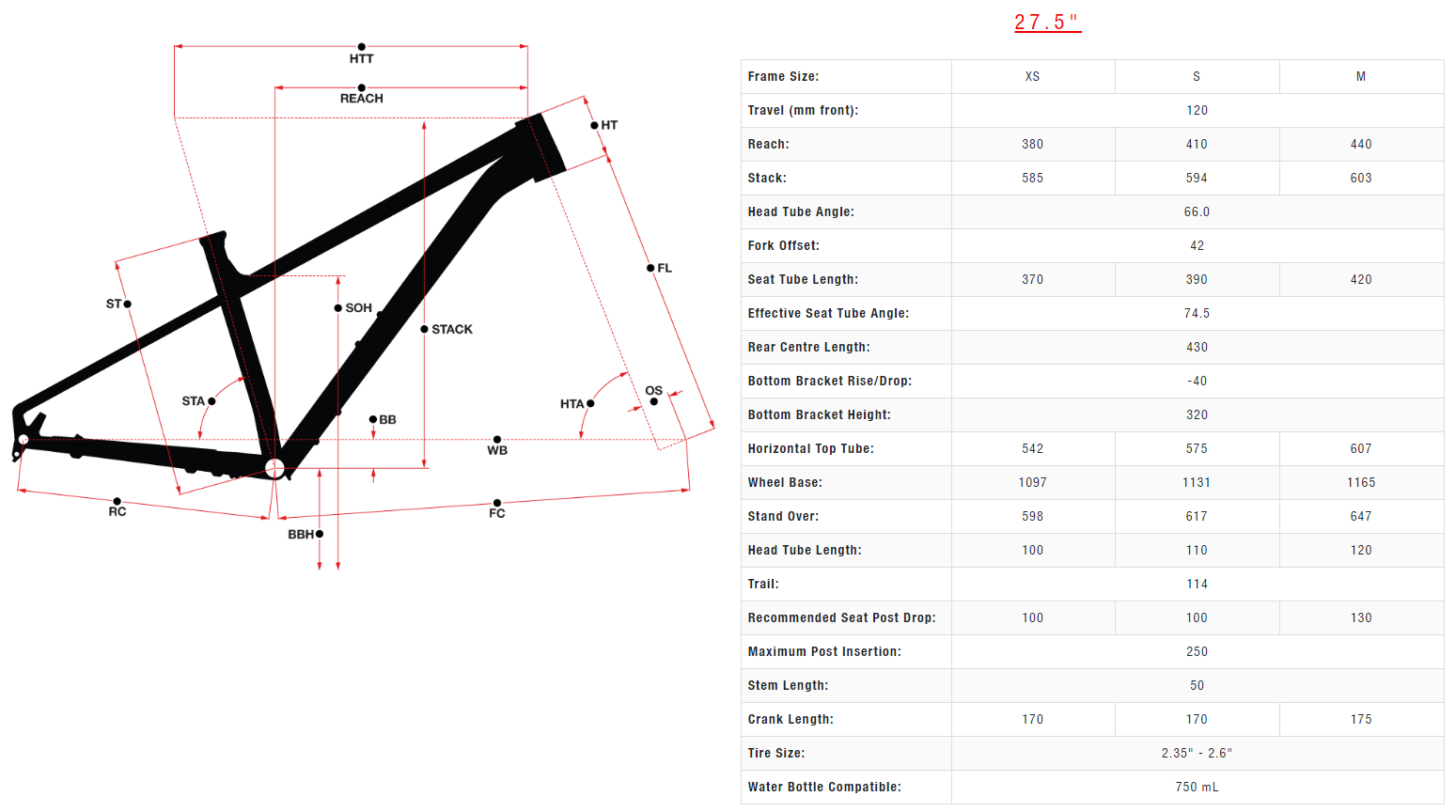

Sizes X-Small – Medium: 27.5-inch
Size Medium: 29-inch
|Frame||6061 Alloy Frame, butted TT & DT|
|Fork||SR-Suntour XCM32, 120mm Travel|
|Headset||Sealed Cartridge Bearing|
Front: 15 x 110mm Boost thru-axle
Rear: 12 x 148mm Boost thru-axle
|Rims/Wheels||Alex DP30 TRS 29"/27.5"|
Front: Alloy Boost
Rear: Alloy Boost, 32H
|Spokes||Stainless 14g, Black|
|Tires||Schwalbe Smart Sam 2.6"|
|Bottom Bracket||SR Suntour BB24|
|Chain||KMC X10 10 speed|
|Rear Derailleur||Shimano Deore M6000, 10 speed|
|Cassette/Rear Cogs||Shimano Deore HG500, 10spd, 11-42T|
|Shifters||Shimano Deore SL-M6000, 10 speed|
|Handlebars||X6 Alloy, 750mm, 31.8 bore|
|Tape/Grips||VP lock on|
|Stem||Norco Alloy, 50mm, 31.8mm bore|
|Brakes||Tektro HD-M275, Hydraulic 180mm front / 160mm rear rotors|
|Pedals||VP Flat nylon|
|Saddle||Norco XC Women's|
|Seat Post||Norco Alloy 31.6mm|
* Subject to change without notice.
|Concrete/Purple / X-Small / 27.5-inch||058817438288||0655410713|
|Concrete/Purple / Small / 27.5-inch||058817438301||0655410714|
|Concrete/Purple / Medium / 27.5-inch||058817438318||0655410715|
|Concrete/Purple / Medium / 29-inch||058817438325||0655410915|
