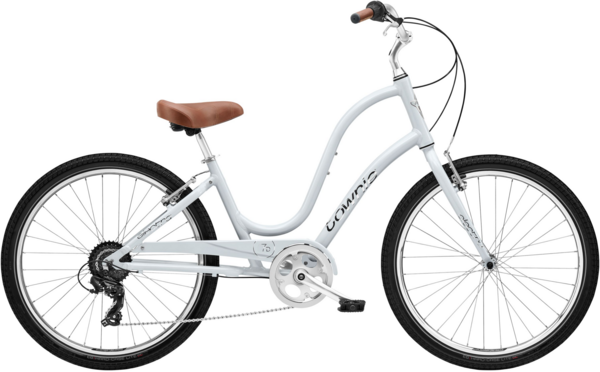

Electra Townie 7D Step-thru
$599.99
Details
The Electra Townie® defined the comfort bike category 20+ years ago. More than just a frame, it's an icon setting the standard in style, simplicity and fun. Complete with Flat Foot Technology®, enjoy an upright seating position that lets you see the world better and plant your feet flat on the ground whenever you want.
| Frame size number | 24 | 26 |
|---|---|---|
| Wheel size | 24" kids' | 26" |
| Seat tube (cm) | 42.1 | 45.8 |
| Seat tube angle | 67.0° | 67.0° |
| Head tube length (cm) | 20 | 21.7 |
| Head angle | 69.0° | 69.0° |
| Wheelbase (cm) | 111.4 | 116.2 |
| Standover (cm) | 46.7 | 45.2 |
| Frame reach (cm) | 31 | 30.5 |
| Frame stack (cm) | 55.8 | 60 |
| Size | Rider Height |
|---|---|
| 24" wheel | 140 - 165cm 4'7" - 5'5" |
| 26" wheel | 150 - 183cm 4'11" - 6'0" |
Specs
| Frame | 6061-T6 Aluminum with Flat Foot Technology® |
|---|---|
| Fork | High-tensile steel unicrown, straight/tapered leg |
| Rims | Anodized double-wall alloy 26''x32h w/machined sidewalls |
| Hubs | Alloy low flange 32h w/QR |
| Spokes | 14g stainless steel |
| Tires | Bontrager E6 hard-case lite 26x2.00'' w/reflective stripe |
| Bottom Bracket | Square taper, loose ball |
| Crankset | Forged alloy 170mm w/steel 44t chainring w/double chainguards |
| Shifters | Shimano Tourney RS45, 7 speed twist |
| Rear Derailleur | Shimano Tourney TY300 |
| Cassette/Freewheel | Shimano TZ31 freewheel, 14-34, 7 speed // 14-34, 7 speed freewheel |
| Chain | KMC Z7, 7 speed |
| Brakes | Alloy linear pull |
| Brake Levers | Alloy, 3-finger |
| Handlebars | Alloy custom bend 25.9'' width/4'' rise |
| Tape/Grips | Electra hand-stitched |
| Stem | Forged alloy 25.4mm quill, 80mm extension |
| Headset | 1 1/8'' steel threaded/semi-integrated |
| Seatpost | Alloy 27.2x350mm |
| Saddle | Ergonomic w/shock-absorbing elastomers |
| Pedals | Resin platform, non-slip tread |
| Accessories & Extras | Kickstand: Alloy |
| Front Brake | Alloy linear pull |
| Rear Brake | Alloy linear pull |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Pewter / One Size / 24-inch | 197216410850 | 5349426 |
| Mauvelous / One Size / 26-inch | 197216274506 | 5341635 |
| Poppy / One Size / 26-inch | 197216274513 | 5341637 |
| Rain / One Size / 26-inch | 197216274476 | 5341631 |
